CRB2 Series rotary Actuator

Product Name:

CRB2 Series rotary Actuator

No. :

CRB2 Series

Product Description

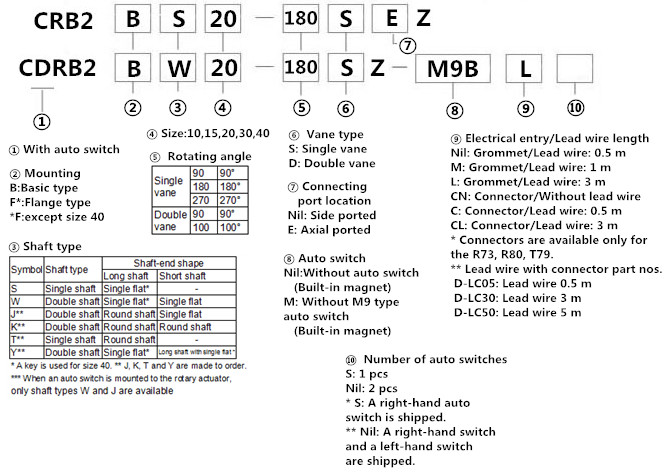

How to Order?

Features

Standard type/Series CRB2

1. Piping ports are located on the flat surface.
Fittings can be secured firmly, piping is also improved

2. Many variations of shaft-end shape (6 types)

Free mount type/Series CRBU2

1. 12% weight reduction

2. Possible to move the plate mounting position as desired

3. Many mounting variations

Specification

Size	10	15	20	30	40
Fluid	Air
Max. operating pressure	0.7 MPa		1.0 MPa
Min. operating pressure	0.15 MPa		1.0 MPa
Ambient and fluid temperature	0° to 60°C (No freezing)
Cushion	Rubber bumper		Not attached, Air cushion
Angle adjustment range	Rotation end ±5°
Rotation	90°, 180°, 360°
Port size	M5X0.8		Rc 1/8, G 1/8, NPT 1/8, NPTF 1/8
Output (N·m)∗	0.3	0.75	1.8	3.1	5.3

∗ Output under the operating pressure at 0.5 MPa. Refer to page 32 for further information

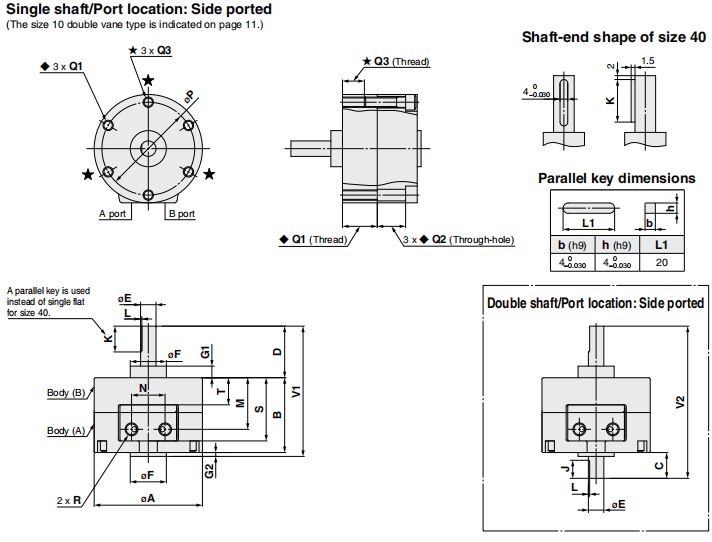

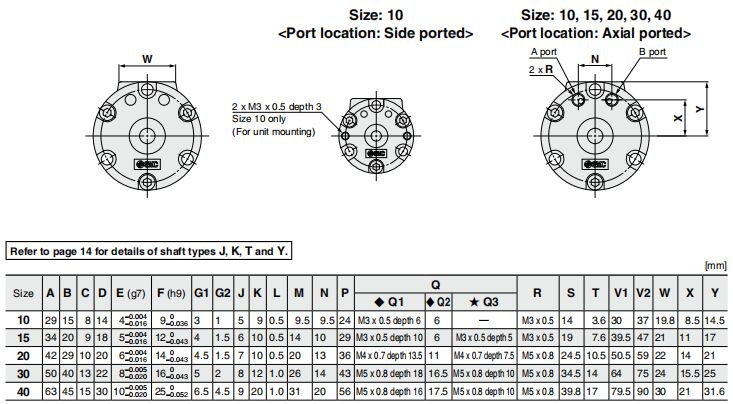

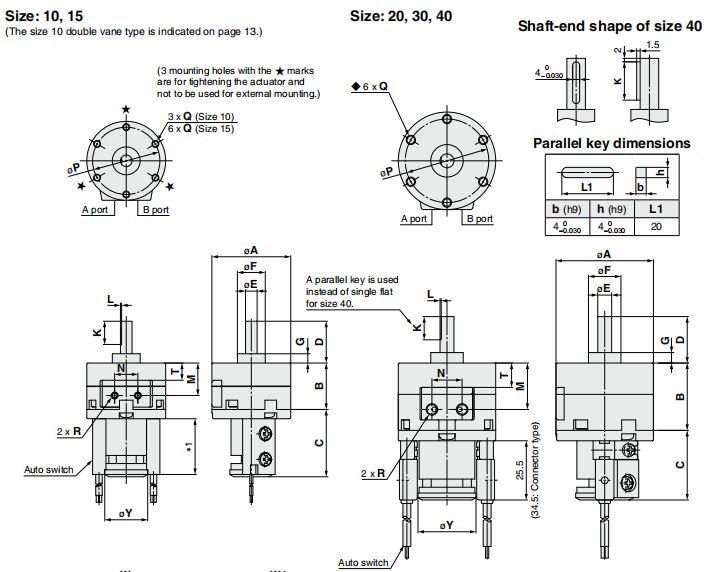

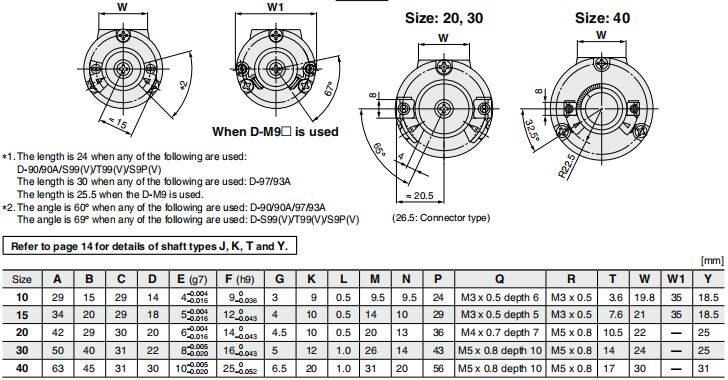

Dimesnion
