Product Name:

CRQ2 Series rotary cylinder

No. :

CRQ2 Series

Product Description

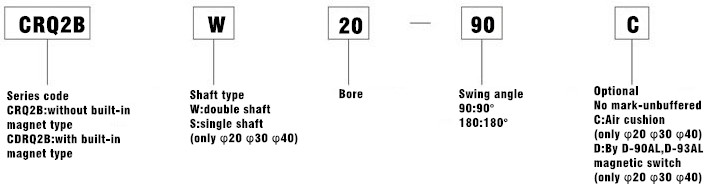

How to Order?

Specification

Size	10	15	20	30	40
Fluid	Air
Max. operating pressure	0.7 MPa		1.0 MPa
Min. operating pressure	0.15 MPa		1.0 MPa
Ambient and fluid temperature	0° to 60°C (No freezing)
Cushion	Rubber bumper		Not attached, Air cushion
Angle adjustment range	Rotation end ±5°
Rotation	90°, 180°, 360°
Port size	M5X0.8		Rc 1/8, G 1/8, NPT 1/8, NPTF 1/8
Output (N·m)∗	0.3	0.75	1.8	3.1	5.3

∗ Output under the operating pressure at 0.5 MPa. Refer to page 32 for further information

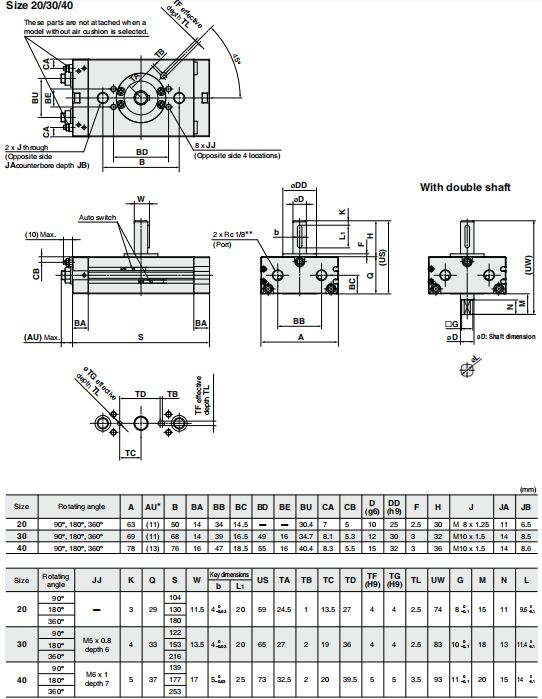

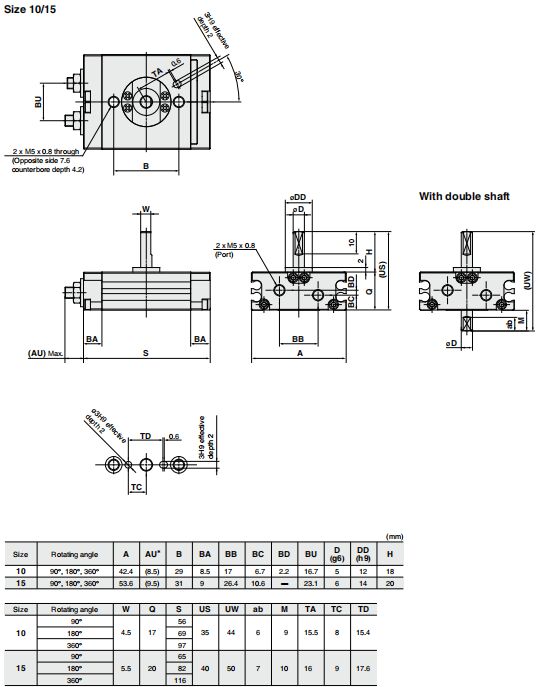

Dimension
