Product Name:
RTH Series Rotary Cylinder
No. :
RTH Series
Product Description

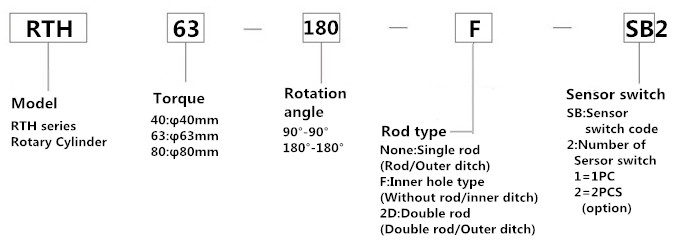

How to Order?
Specification
| Model | RTH40-口 | RTH63-口 | RTH80-口 |
| Operation | Double acting | ||
| Fluid | Air | ||
| Torque N-m | 10 | 40 | 60 |
| Axis size | φ16 | φ24 | φ28 |
| Rotation angle | 90°， 180° | ||
| Adjustable angle | ±5° | ||
| Port Size | G1/4 | G3/8 | |
| Pressure range kgf/cm2(Kpa) | 1.5~7(150~700) | ||
| Temperature range ℃ | ﹣10°~60° | ||
| Mass MAX | 10Kg | 12Kg | 20Kg |

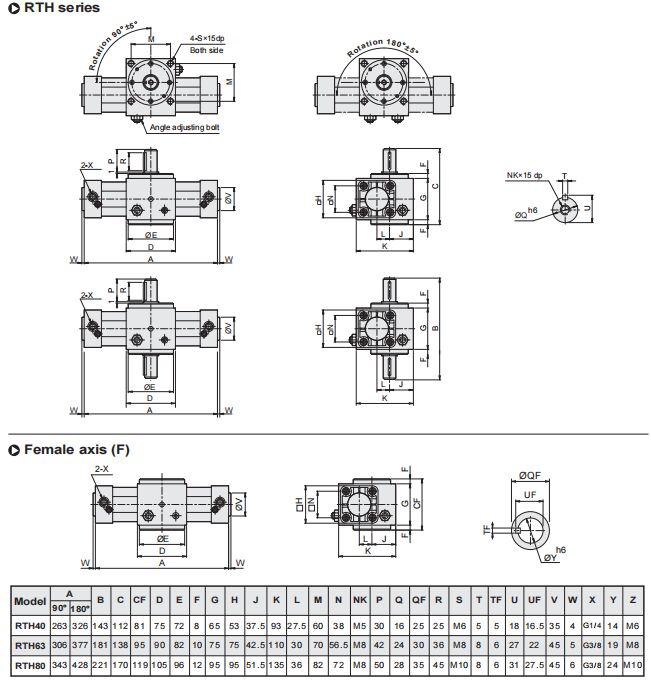

Dimension
