Product Name:
SL Series One touch fittings
No. :
SL Series
Product Description
How to Order?

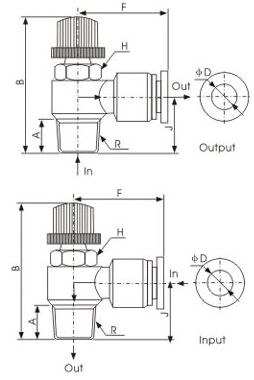

| Model | φD | R | A | B | H | F | J |
| SL4-M5 | 4 | M5 | 4 | 28 | 8 | 24 | 11.4 |
| SL4-01 | 4 | R1/8 | 9 | 25 | 12 | 24.5 | 15.6 |
| SL4-02 | 4 | R1/4 | 12 | 43 | 15 | 25 | 19.2 |
| SL6-M5 | 6 | M5 | 4 | 28 | 8 | 24 | 11.4 |
| SL6-01 | 6 | R1/8 | 9 | 25 | 12 | 24.5 | 15.6 |
| SL6-02 | 6 | R1/4 | 12 | 43 | 15 | 25 | 19.2 |
| SL6-03 | 6 | R3/8 | 12 | 46 | 19 | 29.2 | 20.6 |
| SL6-04 | 6 | R1/2 | 16 | 50 | 22 | 36 | 23.4 |
| SL8-01 | 8 | R1/8 | 9 | 25 | 12 | 24.5 | 15.6 |
| SL8-02 | 8 | R1/4 | 12 | 43 | 15 | 25 | 19.2 |
| SL8-03 | 8 | R3/8 | 12 | 46 | 19 | 29.2 | 20.6 |
| SL8-04 | 8 | R1/2 | 13 | 50 | 22 | 36 | 23.4 |
| SL10-01 | 10 | R1/8 | 9 | 25 | 12 | 24.5 | 15.6 |
| SL10-02 | 10 | R1/4 | 12 | 43 | 15 | 25 | 19.2 |
| SL10-03 | 10 | R3/8 | 12 | 46 | 19 | 29.2 | 20.6 |
| SL10-04 | 10 | R1/2 | 13 | 50 | 22 | 36 | 23.4 |
| SL12-02 | 12 | R1/4 | 12 | 15 | 15 | 25 | 19.2 |
| SL12-03 | 12 | R3/8 | 12 | 19 | 19 | 29.2 | 20.6 |
| SL12-04 | 12 | R1/2 | 13 | 22 | 22 | 36 | 23.4 |
