F.R.L Combination MHY2 Series Pneumatic Gripper
Product Name:
MHY2 Series Pneumatic Gripper
No. :
MHY2 Series
Product Description

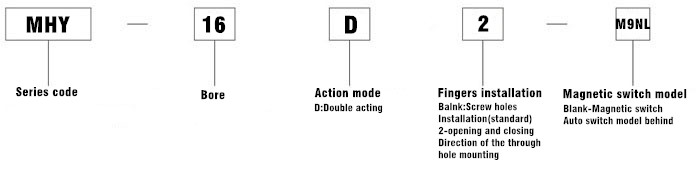

How to Order?
Specification
|
Model |
MHY2-10D |
MHY2-16D |
MHY2-20D |
MHY2-25D |
|
Motion Pattern |
Double acting |
|||
|
Fluid |
Air |
|||
|
Operating Voltage Range |
0.1~0.6 MPa |
|||
|
Ambient and fluid temperature |
-10~60℃ |
|||
|
Lubrication |
Not required |
|||
|
Mffective gripping force (N.m) |
0.16 |
0.54 |
1.1 |
2.28 |
|
Port Size |
M5x0.8 |
|||

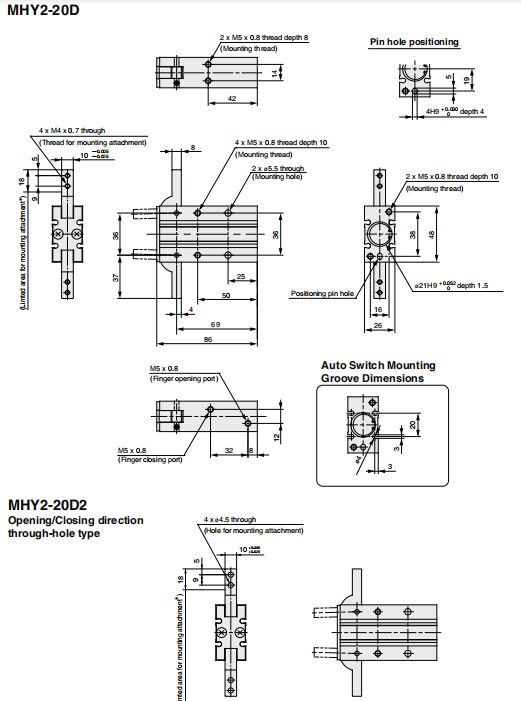

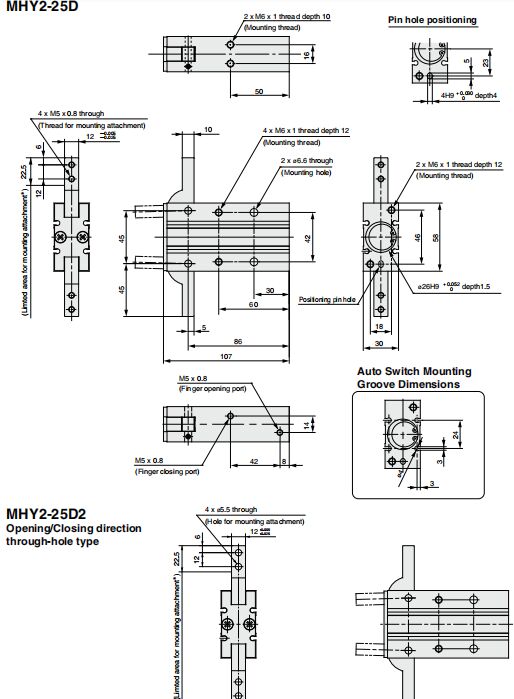

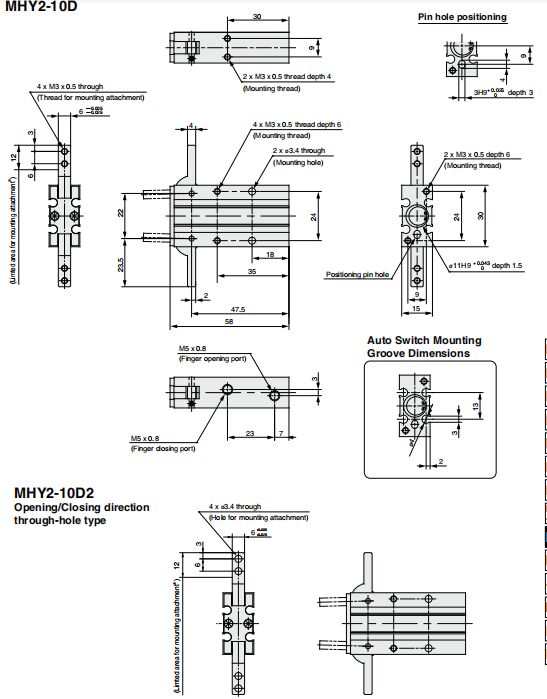

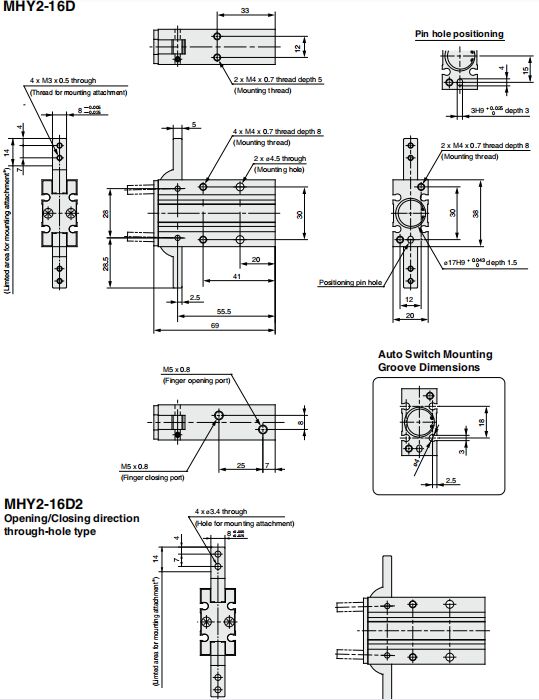

Dimension
BOGSH Pneumatic
